Universe 19599 from The Wolfram Physics Project

100 steps

wm19599`wm19599`

signature

2₃→3₃

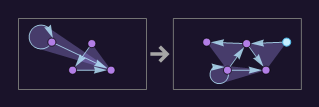

rule

{{{1, 1, 2}, {3, 4, 2}} -> {{4, 4, 2}, {4, 3, 1}, {5, 3, 2}}}

make editable copy
download notebook

Basic Evolution

Basic evolution:

[◼]	WolframModel

[{{{1,1,2},{3,4,2}}{{4,4,2},{4,3,1},{5,3,2}}},{{1,1,1},{1,1,1}},6,"StatesPlotsList"]





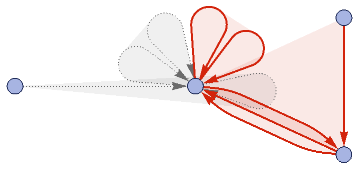

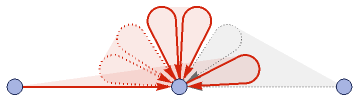

Event-by-event evolution:

[◼]	WolframModel

[{{{1,1,2},{3,4,2}}{{4,4,2},{4,3,1},{5,3,2}}},{{1,1,1},{1,1,1}},<|"MaxEvents"6|>,"EventsStatesPlotsList"]





Vertex and edge counts:

{vertexCountList,edgeCountList}=

[◼]	WolframModel

[{{{1,1,2},{3,4,2}}{{4,4,2},{4,3,1},{5,3,2}}},{{1,1,1},{1,1,1}},500,{"VertexCountList","EdgeCountList"}];

ListLogPlot{vertexCountList,edgeCountList},

SequenceIcon



	vertices
	edges

Symbolic expression for vertex count:

FindSequenceFunction[vertexCountList,t]

DifferenceRootFunction{y.,n.},3+(2-n.)y.[n.]+(-3+n.)y.[1+n.]0,y.[1]1,y.[2]2,y.[3]3,y.[4]5[t]

Symbolic expression for edge count:

FindSequenceFunction[edgeCountList,t]

DifferenceRootFunction{y.,n.},4+(2-n.)y.[n.]+(-3+n.)y.[1+n.]0,y.[1]2,y.[2]3,y.[3]4,y.[4]6[t]

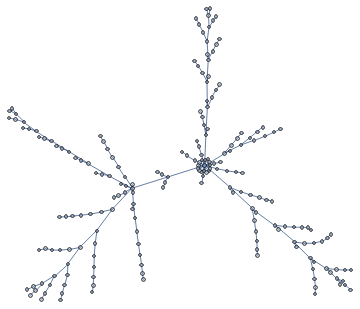

Result after

100

generations:

WolframModel[

]

["FinalStatePlot"]

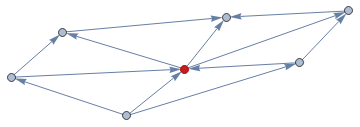

Causal Graph

Causal graph:

WolframModel[

]

"CausalGraph",

Rule[

]



Layered rendering:

WolframModel[

]

["LayeredCausalGraph"]

Causal graph distance matrix:

MatrixPlotTransposeGraphDistanceMatrix

WolframModel[

]

["CausalGraph"],

ListIcon



Final State Properties

Hypergraph adjacency matrix:

MatrixPlotAdjacencyMatrix@CatenateMapUndirectedEdge@@@Subsets[#,{2}]&,

WolframModel[

]

["FinalState"],

ListIcon



Vertex degree distribution:

HistogramValuesCountsCatenateUnion/@

WolframModel[

]

["FinalState"],

ListIcon



Neighborhood volumes (ignoring directedness of connections):

volumes=

[◼]	RaggedMeanAround

Values

[◼]	HypergraphNeighborhoodVolumes



WolframModel[

]

["FinalState"],All,Automatic;

ListLogLogPlotvolumes,

ListIcon



Effective dimension versus radius:

ListLinePlot

[◼]	LogDifferences

[volumes],

ListIcon



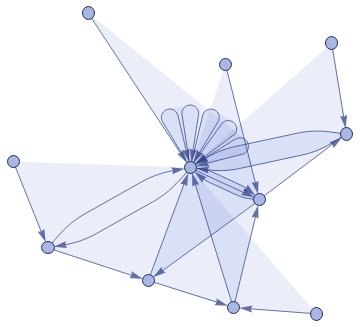

Successive neighborhood balls around a random vertex:

[◼]	HypergraphNeighborhoods



WolframModel[

]

["FinalState"],4





Distance matrix:

distanceMatrix=GraphDistanceMatrixUndirectedGraph

[◼]	HypergraphToGraph



WolframModel[

]

["FinalState"];

MatrixPlotExp[-(distanceMatrix/.0None)],

ListIcon



Distribution of distances in the graph:

HistogramFlatten[distanceMatrix],

ListIcon



Spreading of Effects

Causal graph adjacency matrix:

MatrixPlotAdjacencyMatrix

WolframModel[

]

["CausalGraph"],

ListIcon



Neighborhood volumes in causal graph:

ListLogLogPlotValues

[◼]	GraphNeighborhoodVolumes



WolframModel[

]

["CausalGraph"],{1},

ListIcon



Other Evolution Orders

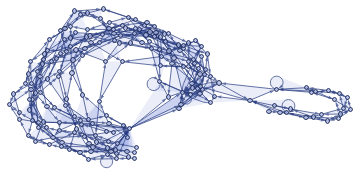

Random evolutions:

[◼]	WolframModel

[{{{1,1,2},{3,4,2}}{{4,4,2},{4,3,1},{5,3,2}}},{{1,1,1},{1,1,1}},<|"MaxEvents"198|>,"FinalStatePlot","EventOrderingFunction""Random"]

Different deterministic evolution orders:

[◼]	WolframModel

[{{{1,1,2},{3,4,2}}{{4,4,2},{4,3,1},{5,3,2}}},{{1,1,1},{1,1,1}},<|"MaxEvents"198|>,"EventOrderingFunction"{#,"LeastRecentEdge","RuleOrdering","RuleIndex"}]["FinalStatePlot",PlotLabel#]&/@{"OldestEdge","LeastOldEdge","LeastRecentEdge","NewestEdge","RuleOrdering","ReverseRuleOrdering"}


