Universe 2849 from The Wolfram Physics Project

11 steps

wm2849`wm2849`

signature

3₂→5₂

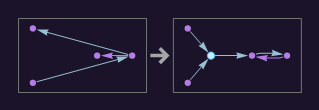

rule

{{{1, 2}, {1, 3}, {4, 1}} -> {{2, 1}, {1, 2}, {5, 2}, {3, 5}, {4, 5}}}

make editable copy
download notebook

Basic Evolution

Basic evolution:

[◼]	WolframModel

[{{{1,2},{1,3},{4,1}}{{2,1},{1,2},{5,2},{3,5},{4,5}}},{{1,1},{1,1},{1,1}},6,"StatesPlotsList"]





Event-by-event evolution:

[◼]	WolframModel

[{{{1,2},{1,3},{4,1}}{{2,1},{1,2},{5,2},{3,5},{4,5}}},{{1,1},{1,1},{1,1}},<|"MaxEvents"6|>,"EventsStatesPlotsList"]





Vertex and edge counts:

{vertexCountList,edgeCountList}=

[◼]	WolframModel

[{{{1,2},{1,3},{4,1}}{{2,1},{1,2},{5,2},{3,5},{4,5}}},{{1,1},{1,1},{1,1}},18,{"VertexCountList","EdgeCountList"}];

ListLogPlot{vertexCountList,edgeCountList},



	vertices
	edges

Result after

generations:

WolframModel[

]

["FinalStatePlot"]

Causal Graph

Causal graph:

WolframModel[

]

"CausalGraph",

Rule[

]



Layered rendering:

WolframModel[

]

["LayeredCausalGraph"]

Causal graph distance matrix:

MatrixPlotTransposeGraphDistanceMatrix

WolframModel[

]

["CausalGraph"],



Final State Properties

Hypergraph adjacency matrix:

MatrixPlotAdjacencyMatrix@CatenateMapUndirectedEdge@@@Subsets[#,{2}]&,

WolframModel[

]

["FinalState"],



Vertex degree distribution:

HistogramValuesCountsCatenateUnion/@

WolframModel[

]

["FinalState"],



Neighborhood volumes (ignoring directedness of connections):

volumes=

[◼]	RaggedMeanAround

Values

[◼]	HypergraphNeighborhoodVolumes



WolframModel[

]

["FinalState"],All,Automatic;

ListLogLogPlotvolumes,



Effective dimension versus radius:

ListLinePlot

[◼]	LogDifferences

[volumes],



Successive neighborhood balls around a random vertex:

[◼]	HypergraphNeighborhoods



WolframModel[

]

["FinalState"],4





Distance matrix:

distanceMatrix=GraphDistanceMatrixUndirectedGraph

[◼]	HypergraphToGraph



WolframModel[

]

["FinalState"];

MatrixPlotExp[-(distanceMatrix/.0None)],



Distribution of distances in the graph:

HistogramFlatten[distanceMatrix],



Spreading of Effects

Causal graph adjacency matrix:

MatrixPlotAdjacencyMatrix

WolframModel[

]

["CausalGraph"],



Neighborhood volumes in causal graph:

ListLogLogPlotValues

[◼]	GraphNeighborhoodVolumes



WolframModel[

]

["CausalGraph"],{1},



Other Evolution Orders

Random evolutions:

[◼]	WolframModel

[{{{1,2},{1,3},{4,1}}{{2,1},{1,2},{5,2},{3,5},{4,5}}},{{1,1},{1,1},{1,1}},<|"MaxEvents"79|>,"FinalStatePlot","EventOrderingFunction""Random"]

Different deterministic evolution orders:

[◼]	WolframModel

[{{{1,2},{1,3},{4,1}}{{2,1},{1,2},{5,2},{3,5},{4,5}}},{{1,1},{1,1},{1,1}},<|"MaxEvents"79|>,"EventOrderingFunction"{#,"LeastRecentEdge","RuleOrdering","RuleIndex"}]["FinalStatePlot",PlotLabel#]&/@{"OldestEdge","LeastOldEdge","LeastRecentEdge","NewestEdge","RuleOrdering","ReverseRuleOrdering"}


