Universe 3147 from The Wolfram Physics Project

50 steps

wm3147`wm3147`

signature

2₃→4₃

rule

{{{1, 1, 2}, {3, 4, 5}} -> {{3, 3, 6}, {1, 3, 2}, {7, 1, 3}, {7, 8, 2}}}

make editable copy
download notebook

Basic Evolution

Basic evolution:

[◼]	WolframModel

[{{{1,1,2},{3,4,5}}{{3,3,6},{1,3,2},{7,1,3},{7,8,2}}},{{1,1,1},{1,1,1}},6,"StatesPlotsList"]





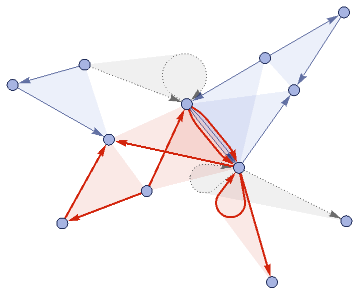

Event-by-event evolution:

[◼]	WolframModel

[{{{1,1,2},{3,4,5}}{{3,3,6},{1,3,2},{7,1,3},{7,8,2}}},{{1,1,1},{1,1,1}},<|"MaxEvents"6|>,"EventsStatesPlotsList"]





Vertex and edge counts:

{vertexCountList,edgeCountList}=

[◼]	WolframModel

[{{{1,1,2},{3,4,5}}{{3,3,6},{1,3,2},{7,1,3},{7,8,2}}},{{1,1,1},{1,1,1}},60,{"VertexCountList","EdgeCountList"}];

ListLogPlot{vertexCountList,edgeCountList},

SequenceIcon



	vertices
	edges

Symbolic expression for vertex count:

FindSequenceFunction[vertexCountList,t]

DifferenceRootFunction{y.,n.},3-14n.+y.[n.]+y.[1+n.]+y.[2+n.]0,y.[1]1,y.[2]4,y.[3]7,y.[4]12,y.[5]17,y.[6]23[t]

Symbolic expression for edge count:

FindSequenceFunction[edgeCountList,t]

DifferenceRootFunction{y.,n.},6+(2-n.)y.[n.]+(-3+n.)y.[1+n.]0,y.[1]2,y.[2]4,y.[3]6,y.[4]10[t]

Result after

generations:

WolframModel[

]

["FinalStatePlot"]

Causal Graph

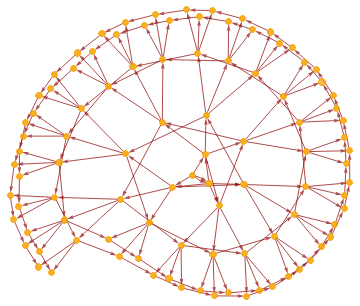

Causal graph:

WolframModel[

]

"CausalGraph",

Rule[

]



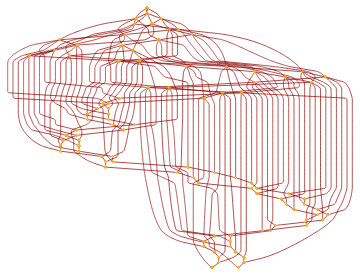

Layered rendering:

WolframModel[

]

["LayeredCausalGraph"]

Causal graph distance matrix:

MatrixPlotTransposeGraphDistanceMatrix

WolframModel[

]

["CausalGraph"],

ListIcon



Final State Properties

Hypergraph adjacency matrix:

MatrixPlotAdjacencyMatrix@CatenateMapUndirectedEdge@@@Subsets[#,{2}]&,

WolframModel[

]

["FinalState"],

ListIcon



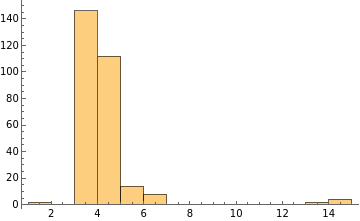

Vertex degree distribution:

HistogramValuesCountsCatenateUnion/@

WolframModel[

]

["FinalState"],

ListIcon



Neighborhood volumes (ignoring directedness of connections):

volumes=

[◼]	RaggedMeanAround

Values

[◼]	HypergraphNeighborhoodVolumes



WolframModel[

]

["FinalState"],All,Automatic;

ListLogLogPlotvolumes,

ListIcon



Effective dimension versus radius:

ListLinePlot

[◼]	LogDifferences

[volumes],

ListIcon



Successive neighborhood balls around a random vertex:

[◼]	HypergraphNeighborhoods



WolframModel[

]

["FinalState"],4





Distance matrix:

distanceMatrix=GraphDistanceMatrixUndirectedGraph

[◼]	HypergraphToGraph



WolframModel[

]

["FinalState"];

MatrixPlotExp[-(distanceMatrix/.0None)],

ListIcon



Distribution of distances in the graph:

HistogramFlatten[distanceMatrix],

ListIcon



Spreading of Effects

Causal graph adjacency matrix:

MatrixPlotAdjacencyMatrix

WolframModel[

]

["CausalGraph"],

ListIcon



Neighborhood volumes in causal graph:

ListLogLogPlotValues

[◼]	GraphNeighborhoodVolumes



WolframModel[

]

["CausalGraph"],{1},

ListIcon



Other Evolution Orders

Random evolutions:

[◼]	WolframModel

[{{{1,1,2},{3,4,5}}{{3,3,6},{1,3,2},{7,1,3},{7,8,2}}},{{1,1,1},{1,1,1}},<|"MaxEvents"98|>,"FinalStatePlot","EventOrderingFunction""Random"]

[◼]	WolframModel

[{{{1,1,2},{3,4,5}}{{3,3,6},{1,3,2},{7,1,3},{7,8,2}}},{{1,1,1},{1,1,1}},MaxEvents98,FinalStatePlot,EventOrderingFunctionRandom]

Different deterministic evolution orders:

[◼]	WolframModel

[{{{1,1,2},{3,4,5}}{{3,3,6},{1,3,2},{7,1,3},{7,8,2}}},{{1,1,1},{1,1,1}},<|"MaxEvents"98|>,"EventOrderingFunction"{#,"LeastRecentEdge","RuleOrdering","RuleIndex"}]["FinalStatePlot",PlotLabel#]&/@{"OldestEdge","LeastOldEdge","LeastRecentEdge","NewestEdge","RuleOrdering","ReverseRuleOrdering"}



[◼]	WolframModel

[{{{1,1,2},{3,4,5}}{{3,3,6},{1,3,2},{7,1,3},{7,8,2}}},{{1,1,1},{1,1,1}},MaxEvents98,EventOrderingFunction{OldestEdge,LeastRecentEdge,RuleOrdering,RuleIndex}][FinalStatePlot,PlotLabelOldestEdge],

[◼]	WolframModel

[{{{1,1,2},{3,4,5}}{{3,3,6},{1,3,2},{7,1,3},{7,8,2}}},{{1,1,1},{1,1,1}},MaxEvents98,EventOrderingFunction{LeastOldEdge,LeastRecentEdge,RuleOrdering,RuleIndex}][FinalStatePlot,PlotLabelLeastOldEdge],

[◼]	WolframModel

[{{{1,1,2},{3,4,5}}{{3,3,6},{1,3,2},{7,1,3},{7,8,2}}},{{1,1,1},{1,1,1}},MaxEvents98,EventOrderingFunction{LeastRecentEdge,LeastRecentEdge,RuleOrdering,RuleIndex}][FinalStatePlot,PlotLabelLeastRecentEdge],

[◼]	WolframModel

[{{{1,1,2},{3,4,5}}{{3,3,6},{1,3,2},{7,1,3},{7,8,2}}},{{1,1,1},{1,1,1}},MaxEvents98,EventOrderingFunction{NewestEdge,LeastRecentEdge,RuleOrdering,RuleIndex}][FinalStatePlot,PlotLabelNewestEdge],

[◼]	WolframModel

[{{{1,1,2},{3,4,5}}{{3,3,6},{1,3,2},{7,1,3},{7,8,2}}},{{1,1,1},{1,1,1}},MaxEvents98,EventOrderingFunction{RuleOrdering,LeastRecentEdge,RuleOrdering,RuleIndex}][FinalStatePlot,PlotLabelRuleOrdering],

[◼]	WolframModel

[{{{1,1,2},{3,4,5}}{{3,3,6},{1,3,2},{7,1,3},{7,8,2}}},{{1,1,1},{1,1,1}},MaxEvents98,EventOrderingFunction{ReverseRuleOrdering,LeastRecentEdge,RuleOrdering,RuleIndex}][FinalStatePlot,PlotLabelReverseRuleOrdering]

Graph Features of States

graph=

[◼]	HypergraphToGraph



WolframModel[

]

["FinalState"];

HistogramClosenessCentrality[graph],

ListIcon



Cycle properties:

EdgeCycleMatrix[UndirectedGraph[graph]]//MatrixPlot

Histogram[Length/@FindFundamentalCycles[UndirectedGraph[graph]]]

FindSpanningTree[UndirectedGraph[graph]]
