Universe 3639 from The Wolfram Physics Project

182 steps

wm3639`wm3639`

signature

2₃→3₃

rule

{{{1, 1, 2}, {3, 4, 4}} -> {{2, 2, 5}, {1, 2, 2}, {4, 2, 5}}}

make editable copy
download notebook

Basic Evolution

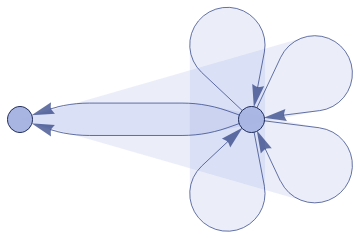

Basic evolution:

[◼]	WolframModel

[{{{1,1,2},{3,4,4}}{{2,2,5},{1,2,2},{4,2,5}}},{{1,1,1},{1,1,1}},6,"StatesPlotsList"]





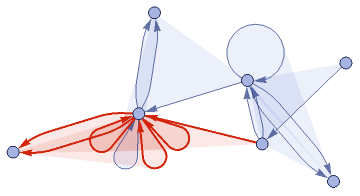

Event-by-event evolution:

[◼]	WolframModel

[{{{1,1,2},{3,4,4}}{{2,2,5},{1,2,2},{4,2,5}}},{{1,1,1},{1,1,1}},<|"MaxEvents"6|>,"EventsStatesPlotsList"]





Vertex and edge counts:

{vertexCountList,edgeCountList}=

[◼]	WolframModel

[{{{1,1,2},{3,4,4}}{{2,2,5},{1,2,2},{4,2,5}}},{{1,1,1},{1,1,1}},201,{"VertexCountList","EdgeCountList"}];

ListLogPlot{vertexCountList,edgeCountList},



	vertices
	edges

Symbolic expression for vertex count:

FindSequenceFunction[vertexCountList,t]

Symbolic expression for edge count:

FindSequenceFunction[edgeCountList,t]

1+t

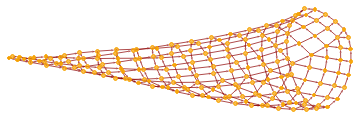

Result after

195

generations:

WolframModel[

]

["FinalStatePlot"]

Causal Graph

Causal graph:

WolframModel[

]

"CausalGraph",

Rule[

]



Layered rendering:

WolframModel[

]

["LayeredCausalGraph"]

Causal graph distance matrix:

MatrixPlotTransposeGraphDistanceMatrix

WolframModel[

]

["CausalGraph"],



Final State Properties

Hypergraph adjacency matrix:

MatrixPlotAdjacencyMatrix@CatenateMapUndirectedEdge@@@Subsets[#,{2}]&,

WolframModel[

]

["FinalState"],



Vertex degree distribution:

HistogramValuesCountsCatenateUnion/@

WolframModel[

]

["FinalState"],



Neighborhood volumes (ignoring directedness of connections):

volumes=

[◼]	RaggedMeanAround

Values

[◼]	HypergraphNeighborhoodVolumes



WolframModel[

]

["FinalState"],All,Automatic;

ListLogLogPlotvolumes,



Effective dimension versus radius:

ListLinePlot

[◼]	LogDifferences

[volumes],



Successive neighborhood balls around a random vertex:

[◼]	HypergraphNeighborhoods



WolframModel[

]

["FinalState"],4





Distance matrix:

distanceMatrix=GraphDistanceMatrixUndirectedGraph

[◼]	HypergraphToGraph



WolframModel[

]

["FinalState"];

MatrixPlotExp[-(distanceMatrix/.0None)],



Distribution of distances in the graph:

HistogramFlatten[distanceMatrix],



Spreading of Effects

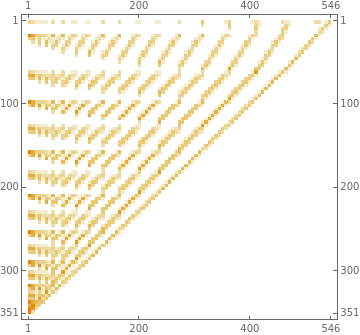

Causal graph adjacency matrix:

MatrixPlotAdjacencyMatrix

WolframModel[

]

["CausalGraph"],



Neighborhood volumes in causal graph:

ListLogLogPlotValues

[◼]	GraphNeighborhoodVolumes



WolframModel[

]

["CausalGraph"],{1},



Other Evolution Orders

Random evolutions:

[◼]	WolframModel

[{{{1,1,2},{3,4,4}}{{2,2,5},{1,2,2},{4,2,5}}},{{1,1,1},{1,1,1}},<|"MaxEvents"195|>,"FinalStatePlot","EventOrderingFunction""Random"]

[◼]	WolframModel

[{{{1,1,2},{3,4,4}}{{2,2,5},{1,2,2},{4,2,5}}},{{1,1,1},{1,1,1}},MaxEvents195,FinalStatePlot,EventOrderingFunctionRandom]

Different deterministic evolution orders:

[◼]	WolframModel

[{{{1,1,2},{3,4,4}}{{2,2,5},{1,2,2},{4,2,5}}},{{1,1,1},{1,1,1}},<|"MaxEvents"195|>,"EventOrderingFunction"{#,"LeastRecentEdge","RuleOrdering","RuleIndex"}]["FinalStatePlot",PlotLabel#]&/@{"OldestEdge","LeastOldEdge","LeastRecentEdge","NewestEdge","RuleOrdering","ReverseRuleOrdering"}



[◼]	WolframModel

[{{{1,1,2},{3,4,4}}{{2,2,5},{1,2,2},{4,2,5}}},{{1,1,1},{1,1,1}},MaxEvents195,EventOrderingFunction{OldestEdge,LeastRecentEdge,RuleOrdering,RuleIndex}][FinalStatePlot,PlotLabelOldestEdge],

[◼]	WolframModel

[{{{1,1,2},{3,4,4}}{{2,2,5},{1,2,2},{4,2,5}}},{{1,1,1},{1,1,1}},MaxEvents195,EventOrderingFunction{LeastOldEdge,LeastRecentEdge,RuleOrdering,RuleIndex}][FinalStatePlot,PlotLabelLeastOldEdge],

[◼]	WolframModel

[{{{1,1,2},{3,4,4}}{{2,2,5},{1,2,2},{4,2,5}}},{{1,1,1},{1,1,1}},MaxEvents195,EventOrderingFunction{LeastRecentEdge,LeastRecentEdge,RuleOrdering,RuleIndex}][FinalStatePlot,PlotLabelLeastRecentEdge],

[◼]	WolframModel

[{{{1,1,2},{3,4,4}}{{2,2,5},{1,2,2},{4,2,5}}},{{1,1,1},{1,1,1}},MaxEvents195,EventOrderingFunction{NewestEdge,LeastRecentEdge,RuleOrdering,RuleIndex}][FinalStatePlot,PlotLabelNewestEdge],

[◼]	WolframModel

[{{{1,1,2},{3,4,4}}{{2,2,5},{1,2,2},{4,2,5}}},{{1,1,1},{1,1,1}},MaxEvents195,EventOrderingFunction{RuleOrdering,LeastRecentEdge,RuleOrdering,RuleIndex}][FinalStatePlot,PlotLabelRuleOrdering],

[◼]	WolframModel

[{{{1,1,2},{3,4,4}}{{2,2,5},{1,2,2},{4,2,5}}},{{1,1,1},{1,1,1}},MaxEvents195,EventOrderingFunction{ReverseRuleOrdering,LeastRecentEdge,RuleOrdering,RuleIndex}][FinalStatePlot,PlotLabelReverseRuleOrdering]

Graph Features of States

graph=

[◼]	HypergraphToGraph



WolframModel[

]

["FinalState"];

HistogramClosenessCentrality[graph],



Cycle properties:

EdgeCycleMatrix[UndirectedGraph[graph]]//MatrixPlot

Histogram[Length/@FindFundamentalCycles[UndirectedGraph[graph]]]

FindSpanningTree[UndirectedGraph[graph]]
