Universe 3864 from The Wolfram Physics Project

101 steps

wm3864`wm3864`

signature

2₃→3₃

rule

{{{1, 1, 2}, {3, 2, 4}} -> {{5, 5, 4}, {5, 1, 4}, {3, 2, 3}}}

make editable copy
download notebook

Basic Evolution

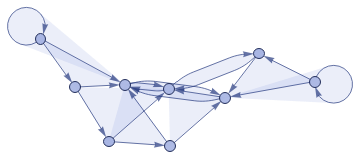

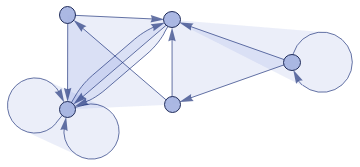

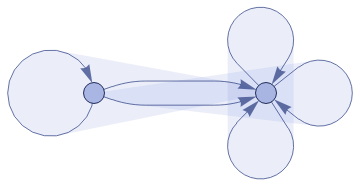

Basic evolution:

[◼]	WolframModel

[{{{1,1,2},{3,2,4}}{{5,5,4},{5,1,4},{3,2,3}}},{{1,1,1},{1,1,1}},6,"StatesPlotsList"]





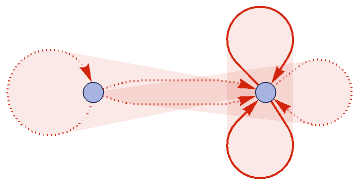

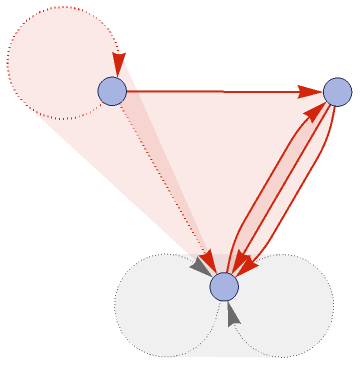

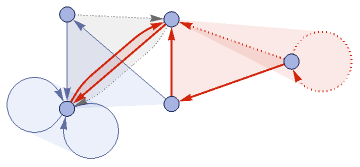

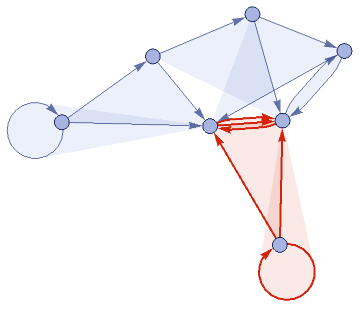

Event-by-event evolution:

[◼]	WolframModel

[{{{1,1,2},{3,2,4}}{{5,5,4},{5,1,4},{3,2,3}}},{{1,1,1},{1,1,1}},<|"MaxEvents"6|>,"EventsStatesPlotsList"]





Vertex and edge counts:

{vertexCountList,edgeCountList}=

[◼]	WolframModel

[{{{1,1,2},{3,2,4}}{{5,5,4},{5,1,4},{3,2,3}}},{{1,1,1},{1,1,1}},500,{"VertexCountList","EdgeCountList"}];

ListLogPlot{vertexCountList,edgeCountList},



	vertices
	edges

Symbolic expression for vertex count:

FindSequenceFunction[vertexCountList,t]

DifferenceRootFunction{y.,n.},5+(4-n.)y.[n.]+(-5+n.)y.[1+n.]0,y.[1]1,y.[2]2,y.[3]3,y.[4]4,y.[5]5,y.[6]7[t]

Symbolic expression for edge count:

FindSequenceFunction[edgeCountList,t]

DifferenceRootFunction{y.,n.},6+(4-n.)y.[n.]+(-5+n.)y.[1+n.]0,y.[1]2,y.[2]3,y.[3]4,y.[4]5,y.[5]6,y.[6]8[t]

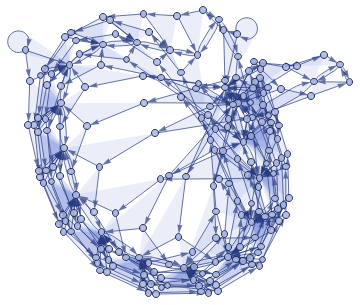

Result after

101

generations:

WolframModel[

]

["FinalStatePlot"]

Causal Graph

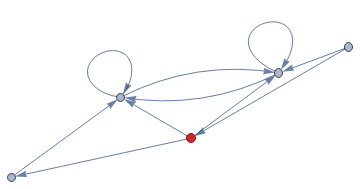

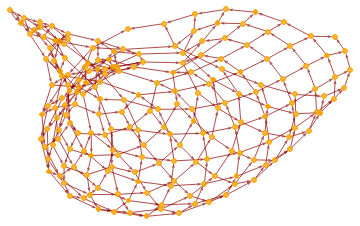

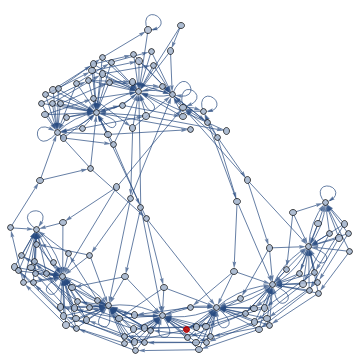

Causal graph:

WolframModel[

]

"CausalGraph",

Rule[

]



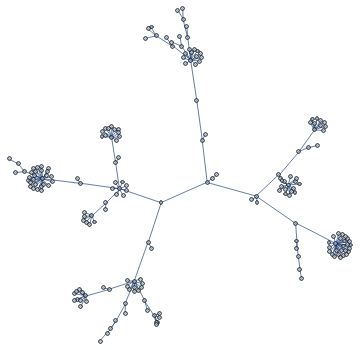

Layered rendering:

WolframModel[

]

["LayeredCausalGraph"]

Causal graph distance matrix:

MatrixPlotTransposeGraphDistanceMatrix

WolframModel[

]

["CausalGraph"],



Final State Properties

Hypergraph adjacency matrix:

MatrixPlotAdjacencyMatrix@CatenateMapUndirectedEdge@@@Subsets[#,{2}]&,

WolframModel[

]

["FinalState"],



Vertex degree distribution:

HistogramValuesCountsCatenateUnion/@

WolframModel[

]

["FinalState"],



Neighborhood volumes (ignoring directedness of connections):

volumes=

[◼]	RaggedMeanAround

Values

[◼]	HypergraphNeighborhoodVolumes



WolframModel[

]

["FinalState"],All,Automatic;

ListLogLogPlotvolumes,



Effective dimension versus radius:

ListLinePlot

[◼]	LogDifferences

[volumes],



Successive neighborhood balls around a random vertex:

[◼]	HypergraphNeighborhoods



WolframModel[

]

["FinalState"],4





Distance matrix:

distanceMatrix=GraphDistanceMatrixUndirectedGraph

[◼]	HypergraphToGraph



WolframModel[

]

["FinalState"];

MatrixPlotExp[-(distanceMatrix/.0None)],



Distribution of distances in the graph:

HistogramFlatten[distanceMatrix],



Spreading of Effects

Causal graph adjacency matrix:

MatrixPlotAdjacencyMatrix

WolframModel[

]

["CausalGraph"],



Neighborhood volumes in causal graph:

ListLogLogPlotValues

[◼]	GraphNeighborhoodVolumes



WolframModel[

]

["CausalGraph"],{1},



Other Evolution Orders

Random evolutions:

[◼]	WolframModel

[{{{1,1,2},{3,2,4}}{{5,5,4},{5,1,4},{3,2,3}}},{{1,1,1},{1,1,1}},<|"MaxEvents"198|>,"FinalStatePlot","EventOrderingFunction""Random"]

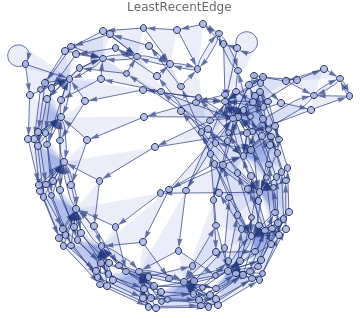

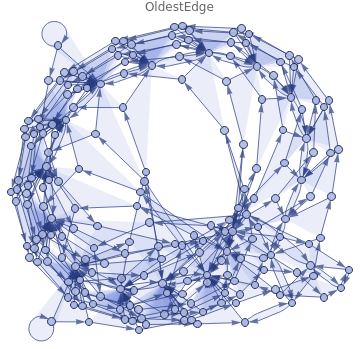

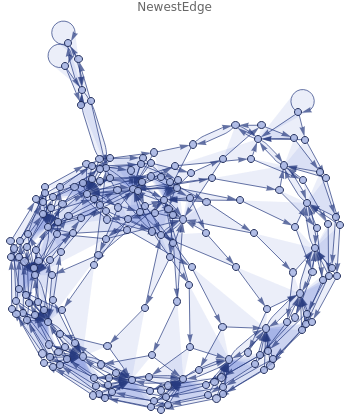

Different deterministic evolution orders:

[◼]	WolframModel

[{{{1,1,2},{3,2,4}}{{5,5,4},{5,1,4},{3,2,3}}},{{1,1,1},{1,1,1}},<|"MaxEvents"198|>,"EventOrderingFunction"{#,"LeastRecentEdge","RuleOrdering","RuleIndex"}]["FinalStatePlot",PlotLabel#]&/@{"OldestEdge","LeastOldEdge","LeastRecentEdge","NewestEdge","RuleOrdering","ReverseRuleOrdering"}


