Universe 9519 from The Wolfram Physics Project

99 steps

wm9519`wm9519`

signature

2₃→4₃

rule

{{{1, 2, 1}, {3, 4, 5}} -> {{6, 7, 6}, {6, 1, 8}, {2, 6, 9}, {9, 4, 1}}}

Basic Evolution

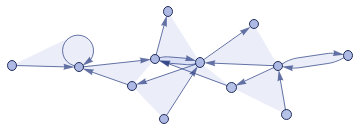

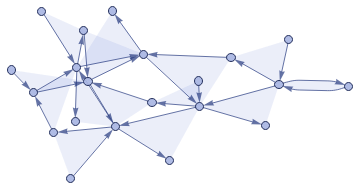

Basic evolution:

[◼]	WolframModel

[{{{1,2,1},{3,4,5}}{{6,7,6},{6,1,8},{2,6,9},{9,4,1}}},{{1,1,1},{1,1,1}},6,"StatesPlotsList"]





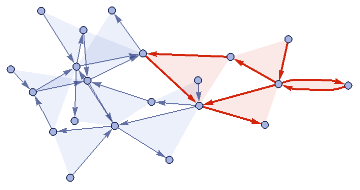

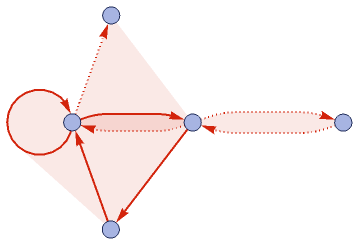

Event-by-event evolution:

[◼]	WolframModel

[{{{1,2,1},{3,4,5}}{{6,7,6},{6,1,8},{2,6,9},{9,4,1}}},{{1,1,1},{1,1,1}},<|"MaxEvents"6|>,"EventsStatesPlotsList"]





Vertex and edge counts:

{vertexCountList,edgeCountList}=

[◼]	WolframModel

[{{{1,2,1},{3,4,5}}{{6,7,6},{6,1,8},{2,6,9},{9,4,1}}},{{1,1,1},{1,1,1}},120,{"VertexCountList","EdgeCountList"}];

ListLogPlot{vertexCountList,edgeCountList},



	vertices
	edges

Symbolic expression for vertex count:

FindSequenceFunction[vertexCountList,t]

DifferenceRootFunction{y.,n.},21+3n.-6

+(3-n.)y.[n.]+(-7+3n.)y.[1+n.]0,y.[1]1[t]

Symbolic expression for edge count:

FindSequenceFunction[edgeCountList,t]

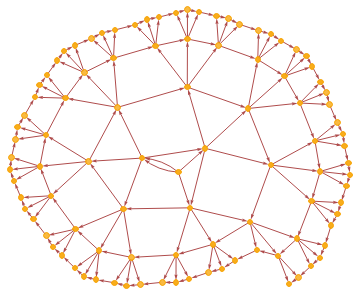

Result after

generations:

WolframModel[

]

["FinalStatePlot"]

Causal Graph

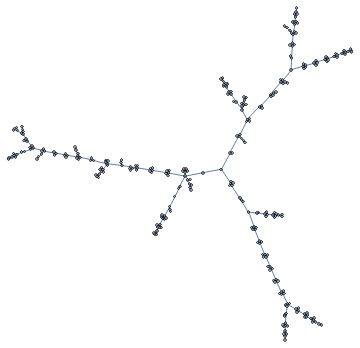

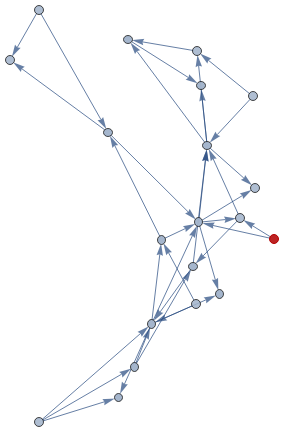

Causal graph:

WolframModel[

]

"CausalGraph",

Rule[

]



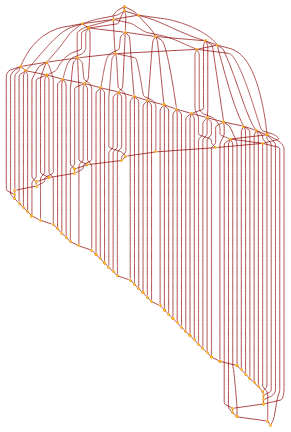

Layered rendering:

WolframModel[

]

["LayeredCausalGraph"]

Causal graph distance matrix:

MatrixPlotTransposeGraphDistanceMatrix

WolframModel[

]

["CausalGraph"],



Final State Properties

Hypergraph adjacency matrix:

MatrixPlotAdjacencyMatrix@CatenateMapUndirectedEdge@@@Subsets[#,{2}]&,

WolframModel[

]

["FinalState"],



Vertex degree distribution:

HistogramValuesCountsCatenateUnion/@

WolframModel[

]

["FinalState"],



Neighborhood volumes (ignoring directedness of connections):

volumes=

[◼]	RaggedMeanAround

Values

[◼]	HypergraphNeighborhoodVolumes



WolframModel[

]

["FinalState"],All,Automatic;

ListLogLogPlotvolumes,



Effective dimension versus radius:

ListLinePlot

[◼]	LogDifferences

[volumes],



Successive neighborhood balls around a random vertex:

[◼]	HypergraphNeighborhoods



WolframModel[

]

["FinalState"],4





Distance matrix:

distanceMatrix=GraphDistanceMatrixUndirectedGraph

[◼]	HypergraphToGraph



WolframModel[

]

["FinalState"];

MatrixPlotExp[-(distanceMatrix/.0None)],



Distribution of distances in the graph:

HistogramFlatten[distanceMatrix],



Spreading of Effects

Causal graph adjacency matrix:

MatrixPlotAdjacencyMatrix

WolframModel[

]

["CausalGraph"],



Neighborhood volumes in causal graph:

ListLogLogPlotValues

[◼]	GraphNeighborhoodVolumes



WolframModel[

]

["CausalGraph"],{1},



Graph Features of States

graph=

[◼]	HypergraphToGraph



WolframModel[

]

["FinalState"];

HistogramClosenessCentrality[graph],



Cycle properties:

EdgeCycleMatrix[UndirectedGraph[graph]]//MatrixPlot

Histogram[Length/@FindFundamentalCycles[UndirectedGraph[graph]]]

FindSpanningTree[UndirectedGraph[graph]]
