2.2 First Example of a Rule

The core of our models are rules for rewriting collections of relations. A very simple example of a rule is:

{{x, y}} -> {{x, y}, {y, z}}

Here x, y and z stand for any elements. (The elements they stand for need not be distinct; for example, x and y could both stand for the element 1.) The rule states that wherever a relation that matches {x,y} appears, it should be replaced by {{x ,y},{y,z}}, where z is a new element. So given {{1, 2}} the rule will produce {{1,2},{2,}} where is a new element. The label for the new element could be anythingso long as it is distinct from 1 and 2. Here we will use 3, so that the result of applying the rule to {{1,2}} becomes:

{{1, 2}, {2, 3}}

If one applies the rule again, it will now operate again on {1,2}, and also on {2,3}. On {1,2} it again gives {{1,2},{2,}}, but now the new node cannot be labeled 3, because that label is already takenso instead we will label it 4. When the rule operates on {2,3} it gives {{2,3},{3,}}, where again is a new node, which can now be labeled 5. Combining these gives the final result:

{{1, 2}, {2, 4}, {2, 3}, {3, 5}}

(We have written this so that the results from {{1,2}} are followed by those from {{2,3}}but there is no significance to the order in which the relations appear.)

In graphical terms, the rule we have used is

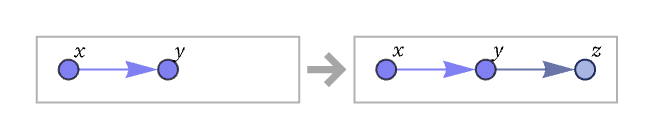

RulePlot[ResourceFunction[ "WolframModel"][{{{x, y}} -> {{x, y}, {y, z}}}], VertexLabels -> Automatic, "RulePartsAspectRatio" -> 0.25]

and the sequence of steps is:

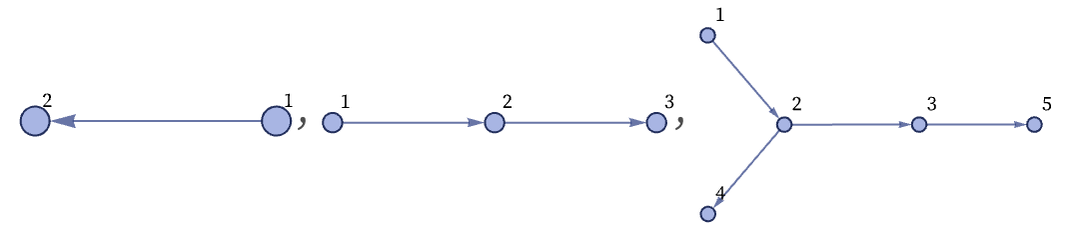

ResourceFunction["WolframModelPlot"][#, VertexLabels -> Automatic] & /@ ResourceFunction[ "WolframModel"][{{{x, y}} -> {{x, y}, {y, z}}}, {{1, 2}}, 2, "StatesList"]

It is important to note that all that matters in these graphs is their connectivity. Where nodes are placed on the page in drawing the graph has no fundamental significance; it is usually just done to make the graphs as easy to read as possible.

Continuing to apply the same rule for three more steps gives:

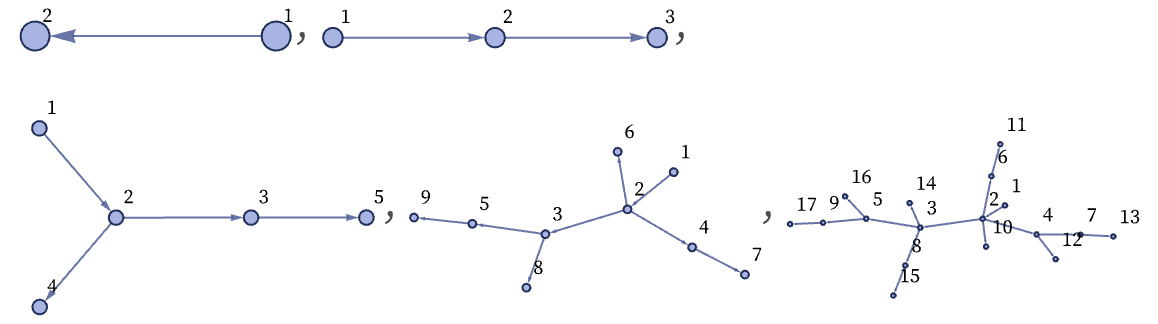

ResourceFunction["WolframModelPlot"][#, VertexLabels -> Automatic] & /@ ResourceFunction[ "WolframModel"][{{{x, y}} -> {{x, y}, {y, z}}}, {{1, 2}}, 4, "StatesList"]

Laying out nodes differently makes it easier to see some features of the graphs:

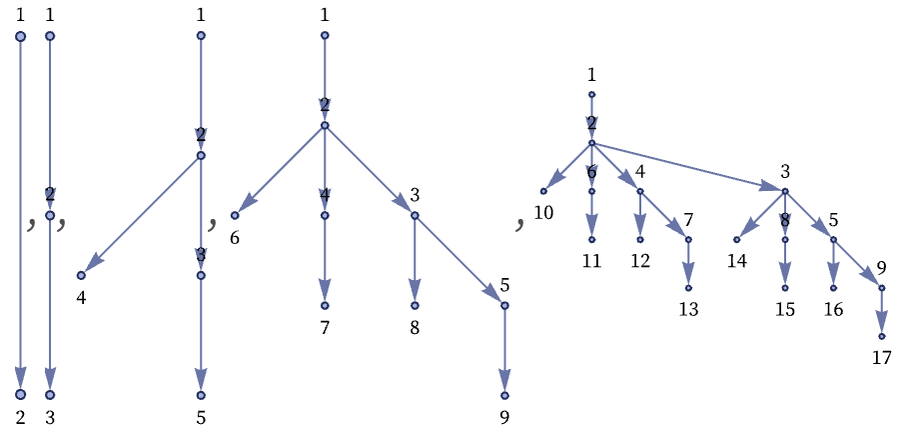

Graph[Rule @@@ #, VertexLabels -> Automatic, VertexStyle -> ResourceFunction["WolframPhysicsProjectStyleData"]["SpatialGraph", "VertexStyle"], EdgeStyle -> ResourceFunction["WolframPhysicsProjectStyleData"]["SpatialGraph", "EdgeLineStyle"], GraphLayout -> "LayeredDigraphEmbedding"] & /@ ResourceFunction[ "WolframModel"][{{{x, y}} -> {{x, y}, {y, z}}}, {{1, 2}}, 4, "StatesList"]

Continuing for a few more steps with the original layout gives the result:

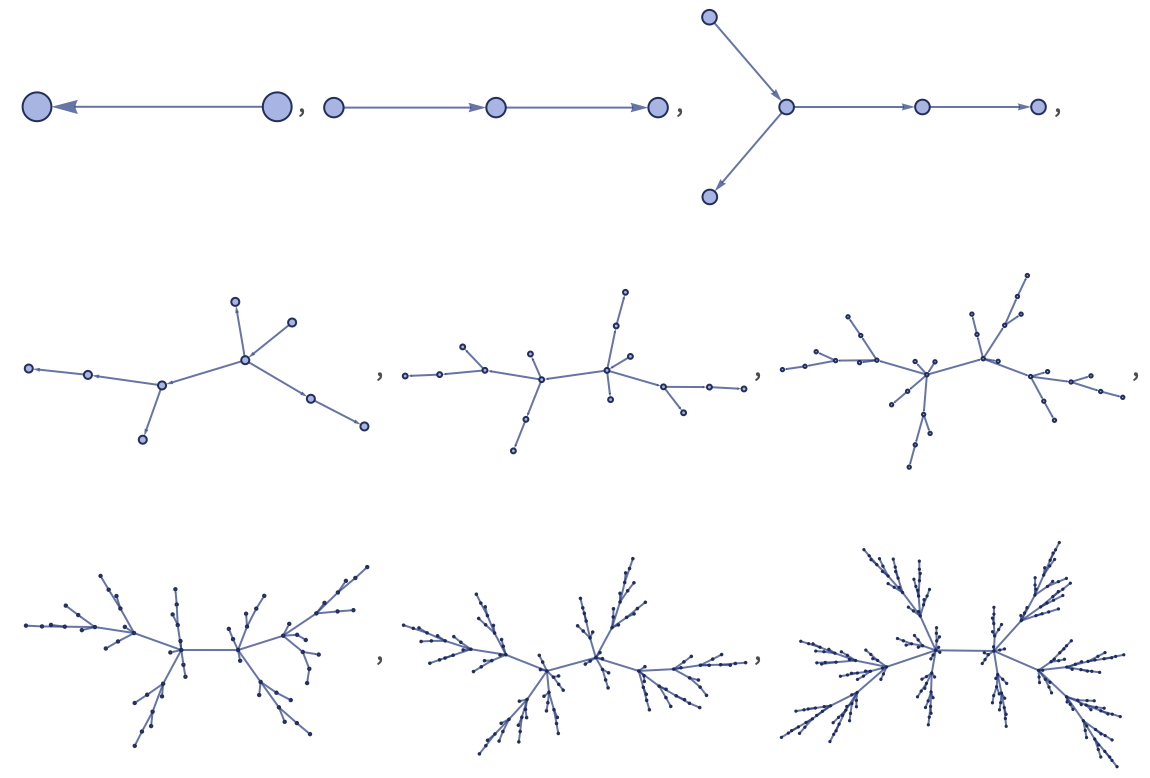

ResourceFunction[ "WolframModel"][{{{x, y}} -> {{x, y}, {y, z}}}, {{1, 2}}, 8, "StatesPlotsList"]

Showing the last 3 steps with the other layout makes it a little clearer what is going on:

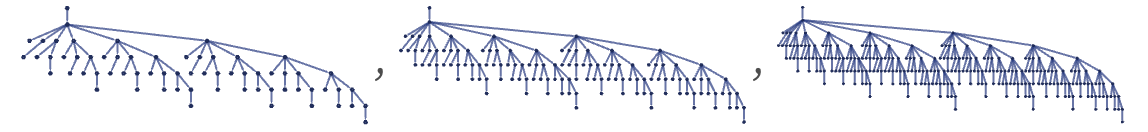

Graph[Rule @@@ #, GraphLayout -> "LayeredDigraphEmbedding", VertexStyle -> ResourceFunction["WolframPhysicsProjectStyleData"]["SpatialGraph", "VertexStyle"], EdgeStyle -> ResourceFunction["WolframPhysicsProjectStyleData"]["SpatialGraph", "EdgeLineStyle"], AspectRatio -> 1/3] & /@ Take[ResourceFunction[ "WolframModel"][{{{x, y}} -> {{x, y}, {y, z}}}, {{1, 2}}, 8, "StatesList"], -3]

The rule is generating a binomial tree, with 2n edges (relations) and 2n+1 nodes (distinct elements) at step n (and with Binomial[n, s1] nodes at level s).
