# 3.3 Initial Conditions

In addition to enumerating rules, we can also consider enumerating possible initial conditions. Like each side of a rule, these can be characterized by sequences n1k1n2k2... which give the number of relations ni of arity ki.

The only possible inequivalent 12 initial conditions are {{1,1}}, corresponding a graph consisting of a single self-loop, and {{1,2}}, consisting of a single edge. The possible inequivalent connected 22 initial conditions are:

ResourceFunction["EnumerateHypergraphs"][{{2, 2}}]

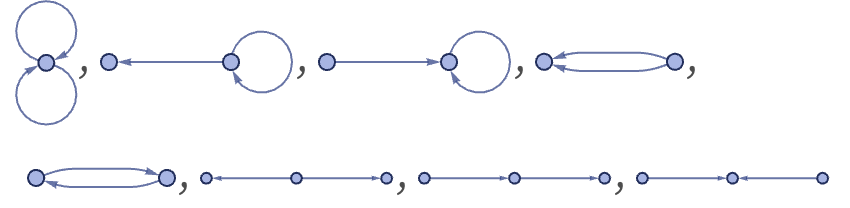

These correspond to the graphs:

ResourceFunction["WolframModelPlot"][#, "MaxImageSize" -> 100] & /@ {{{1, 1}, {1, 1}}, {{1, 1}, {1, 2}}, {{1, 1}, {2, 1}}, {{1, 2}, {1, 2}}, {{1, 2}, {2, 1}}, {{1, 2}, {1, 3}}, {{1, 2}, {2, 3}}, {{1, 2}, {3, 2}}}

The possible inequivalent 13 initial conditions are:

ResourceFunction["EnumerateHypergraphs"][{{1, 3}}]

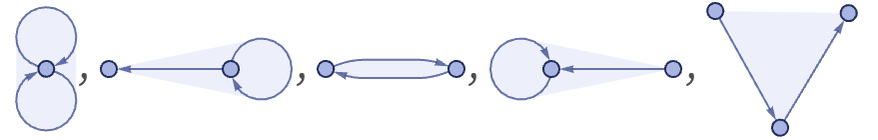

These correspond to the hypergraphs:

ResourceFunction["WolframModelPlot"][#, "MaxImageSize" -> 100] & /@ ResourceFunction["EnumerateHypergraphs"][{{1, 3}}]

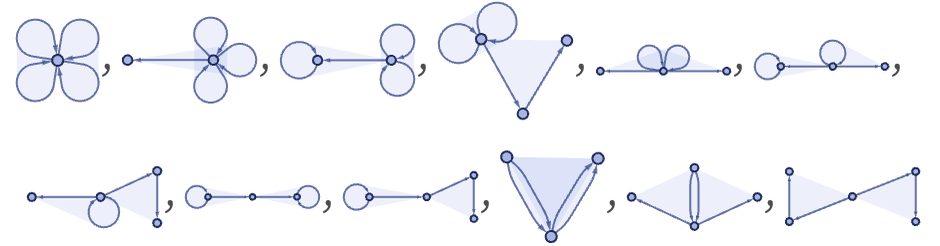

There are 102 inequivalent connected 23 initial conditions. Ignoring ordering of relations, these correspond to hypergraphs with the following structures:

ResourceFunction["WolframModelPlot"][#, "MaxImageSize" -> 70] & /@ Union[ResourceFunction["EnumerateHypergraphs"][{{2, 3}}], SameTest -> (IsomorphicGraphQ[ UndirectedGraph[ResourceFunction["HypergraphToGraph"]@#1], UndirectedGraph[ResourceFunction["HypergraphToGraph"]@#2]] &)]

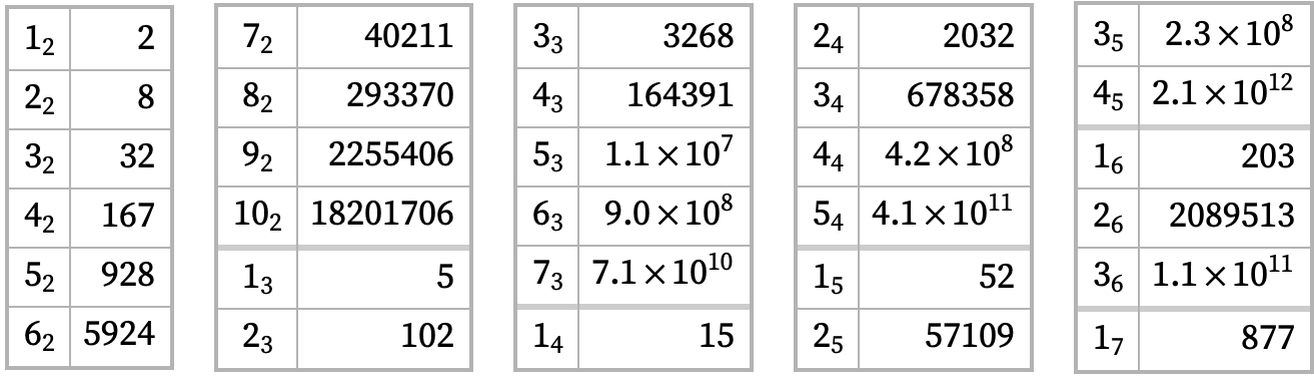

Ignoring connectivity, the number of possible inequivalent n1 initial conditions is PartitionsP[n], the number of 1n ones is BellB[n], while the number of n2 ones can be derived using cycle index polynomials (see also [11:A137975]). The number of inequivalent connected initial conditions for various small signatures is as follows (with essentially the same Bell number estimates applying as for rules) [12]:

CloudGet["https://wolfr.am/Lc8paiaf"];RuleSignatureForm[ s : ({{_Integer, _Integer} ...} -> {{_Integer, _Integer} ...})] := RSF0 /@ s; RuleSignatureForm[s_List] := Row[Riffle[RuleSignatureForm /@ s, ", "]]; RSF0[s : {{_Integer, _Integer} ...}] := Row[Subscript[#1, #2] & @@@ ReverseSortBy[s, Last]]; Row[MapThread[ Function[{g, div}, Grid[g, Alignment -> {{Center, {Right}}, Inherited}, BaseStyle -> "Text", Dividers -> {Thread[{1, 3} -> Directive[Thick, GrayLevel[0.7]]], Join[Thread[{1, 7} -> Directive[Thick, GrayLevel[0.7]]], div]}, FrameStyle -> GrayLevel[0.7], Frame -> All, ItemSize -> {Automatic, 1.2}]], {Transpose[ Partition[Transpose[Flatten[Partition[KeyValueMap[{RSF0[{#1}], NumberForm[#2, 2]} &, results], UpTo[6]], {{2}, {1, 3}}]], 2], {1, 3, 2}], {{}, {5 -> Directive[AbsoluteThickness[3], GrayLevel[0.8]]}, {6 -> Directive[AbsoluteThickness[3], GrayLevel[0.8]]}, {5 -> Directive[AbsoluteThickness[3], GrayLevel[0.8]]}, Thread[{3, 6} -> Directive[AbsoluteThickness[3], GrayLevel[0.8]]]}}], Spacer[10]]

A rule can only apply to a given initial condition if the initial condition contains at least enough relations to match all elements of the left-hand side of the rule. In other words, for a rule with signature nk there must be at least n k-ary relations in the initial condition.

One way to guarantee that a rule will be able to apply to an initial condition is to make the initial condition in effect be a copy of the left-hand side of the rule, for example giving an initial condition {{1,2},{1,3}} for a rule with left-hand side {{x,y},{x,z}}. But the initial condition that in effect has the most chance to match is what is in many ways the simplest possible initial condition: the “self-loop” one where all elements are identical, or in this case {{0,0},{0,0}}. In what follows we will usually use such self-loop initial conditions Table[0,n,k].
