5.3 States Graphs

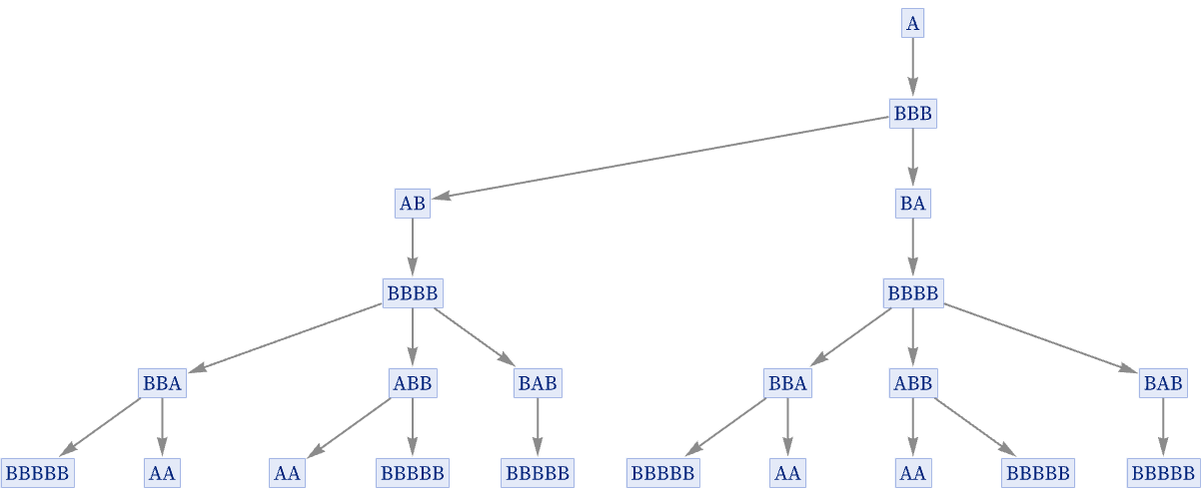

If there are multiple successors to a particular state in a substitution system one thing to do would be just to assume that each of these successors is a new, unique state. The result of this will always be to produce a tree of states, here shown for the rule {A BBB, BB A}:

LayeredGraphPlot[ ResourceFunction["MultiwaySystem"][{"A" -> "BBB", "BB" -> "A"}, "A", 5, "EvolutionGraphUnmerged"], AspectRatio -> .4]

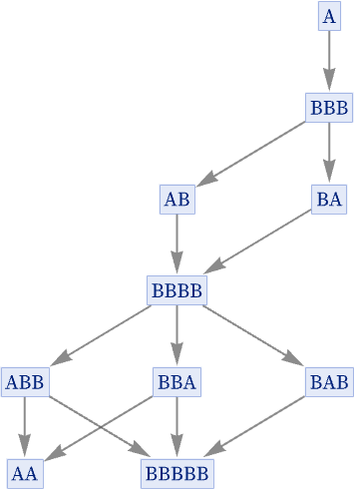

But in our construction of multiway systems, we assume that actually the states produced are not all unique, and instead that states at a given step consisting of the same string can be merged, thereby reducing the tree above to the directed graph:

Graph[ResourceFunction["MultiwaySystem"][{"A" -> "BBB", "BB" -> "A"}, "A", 5, "StatesGraph"], AspectRatio -> 1.5]

But if we are going to merge identical states, why do so only at a given step? Why not merge identical states whenever they occur in the evolution of the system? After all, given the setup, a particular statewherever it occurswill always evolve in the same way, so in some sense it is redundant to show it multiple times.

The particular rule {A BBB, BB A} that we have just used as an example has the special feature that it always “makes progress” and never repeats itselfwith the result that a given string only ever appears once in its evolution. Most rules, however, do not have this property.

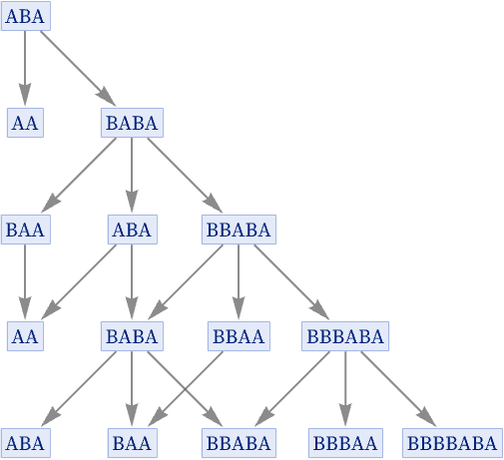

Consider for example the rule {AB BAB, BA A}. Starting from ABA, here is our normal “evolution graph”:

LayeredGraphPlot@ ResourceFunction["MultiwaySystem"][{"AB" -> "BAB", "BA" -> "A"}, "ABA", 4, "EvolutionGraph"]

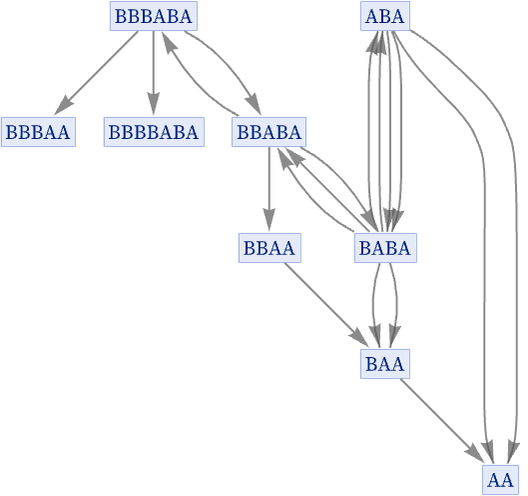

Notice that in this evolution even the original state ABA appears again, both at step 3 and at step 5and each time it appears, it necessarily makes a complete repeat of the same evolution graph. To remove this redundancy, we can make a graph in which we effectively merge all instances of a given state, so that we show each state only once, connecting it to whatever states it evolves to under the rule:

GraphPlot[ ResourceFunction["MultiwaySystem"][{"AB" -> "BAB", "BA" -> "A"}, "ABA", 4, "StatesGraph", "IncludeEventInstances" -> True], GraphLayout -> {"LayeredDigraphEmbedding", "RootVertex" -> "ABA"}]

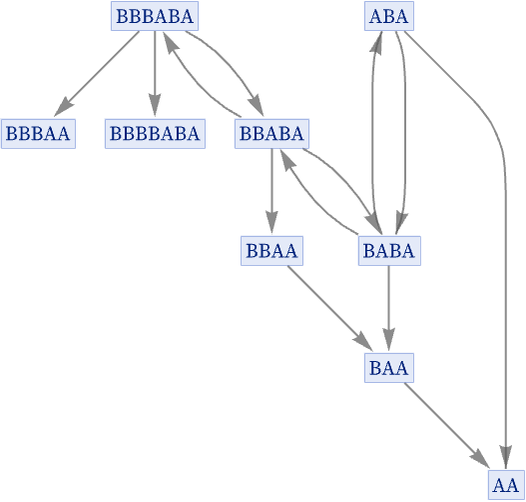

But in this graph there are, for example, two connections from ABA to BABA, because this transformation happens twice in the 4 steps of evolution that we are considering. But in a sense this multiplicity again always gives redundant information, so in what we will call our “states graph” [1:p209], we only ever keep one connection between any given pair of states, so that in this case we get:

GraphPlot[ ResourceFunction["MultiwaySystem"][{"AB" -> "BAB", "BA" -> "A"}, "ABA", 4, "StatesGraph"], GraphLayout -> {"LayeredDigraphEmbedding", "RootVertex" -> "ABA"}]

There is one further subtlety in the construction of a states graph. The graph only records which state can be transformed into which other: it does not record how many different replacements could be applied to achieve this. In the rule we just showed, it is never possible to have different replacements on a single string yield the same result.

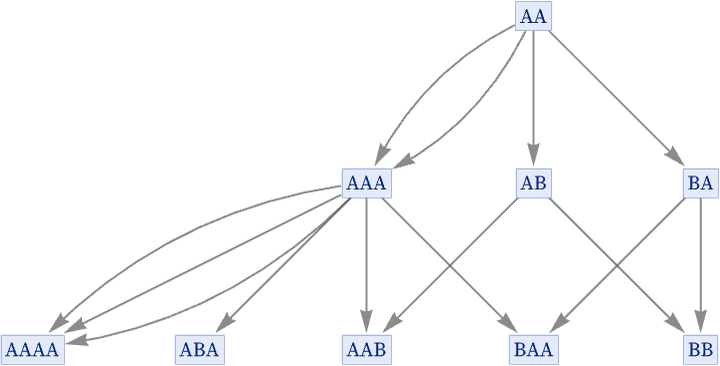

Consider the rule {A AA, A B} starting with AA. There are, for example, two different ways that this rule can be applied to AA to get AAA:

LayeredGraphPlot@ ResourceFunction["MultiwaySystem"][{"A" -> "AA", "A" -> "B"}, "AA", 2, "EvolutionGraphFull"]

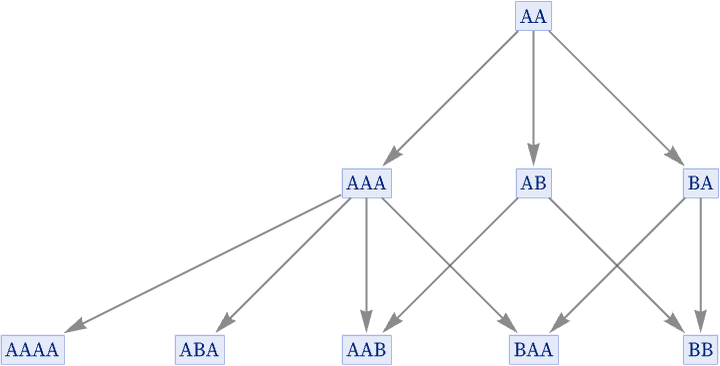

In our standard states graph, however, we show only that AA is transformed to AAA, and we do not record how many different possible replacements can achieve this:

LayeredGraphPlot@ ResourceFunction["MultiwaySystem"][{"A" -> "AA", "A" -> "B"}, "AA", 2, "EvolutionGraph"]

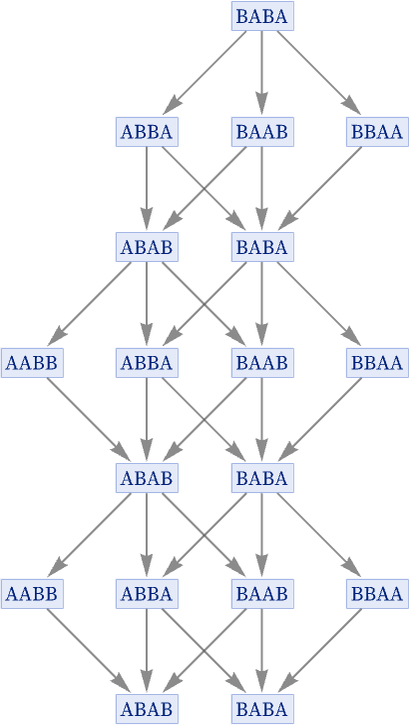

The degree of compression achieved in going from evolution graphs to states graphs can be quite dramatic. For example, for the rule {BA AB, AB BA} the evolution graph is

LayeredGraphPlot@ ResourceFunction["MultiwaySystem"][{"BA" -> "AB", "AB" -> "BA"}, "BABA", 6, "EvolutionGraph"]

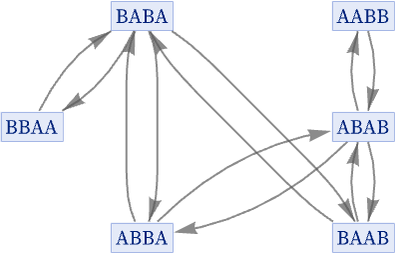

and the states graph is

GraphPlot[ ResourceFunction["MultiwaySystem"][{"BA" -> "AB", "AB" -> "BA"}, {"BABA"}, 6, "StatesGraph"], GraphLayout -> {"LayeredDigraphEmbedding", "RootVertex" -> "BABA"}]

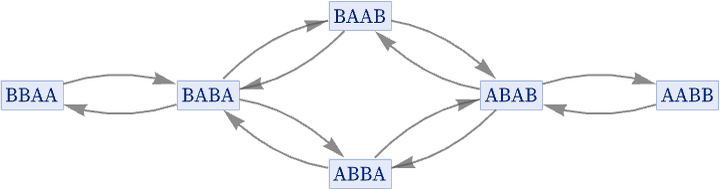

or in our standard rendering:

ResourceFunction["MultiwaySystem"][{"BA" -> "AB", "AB" -> "BA"}, {"BABA"}, 6, "StatesGraph"]

Note that causal invariance works the same in states graphs as it does in evolution graphs: if a rule is causal invariant, any two paths that diverge must eventually reconverge.
