technical introduction Basic Form of Models

2.3 A Slightly Different Rule

Since order within each relation matters, the following is a different rule:

{{x, y}} -> {{z, y}, {y, x}}

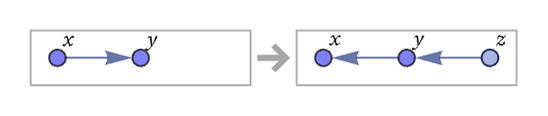

This rule can be represented graphically as:

RulePlot[ResourceFunction[ "WolframModel"][{{x, y}} -> {{z, y}, {y, x}}], VertexLabels -> Automatic, "RulePartsAspectRatio" -> 0.25]

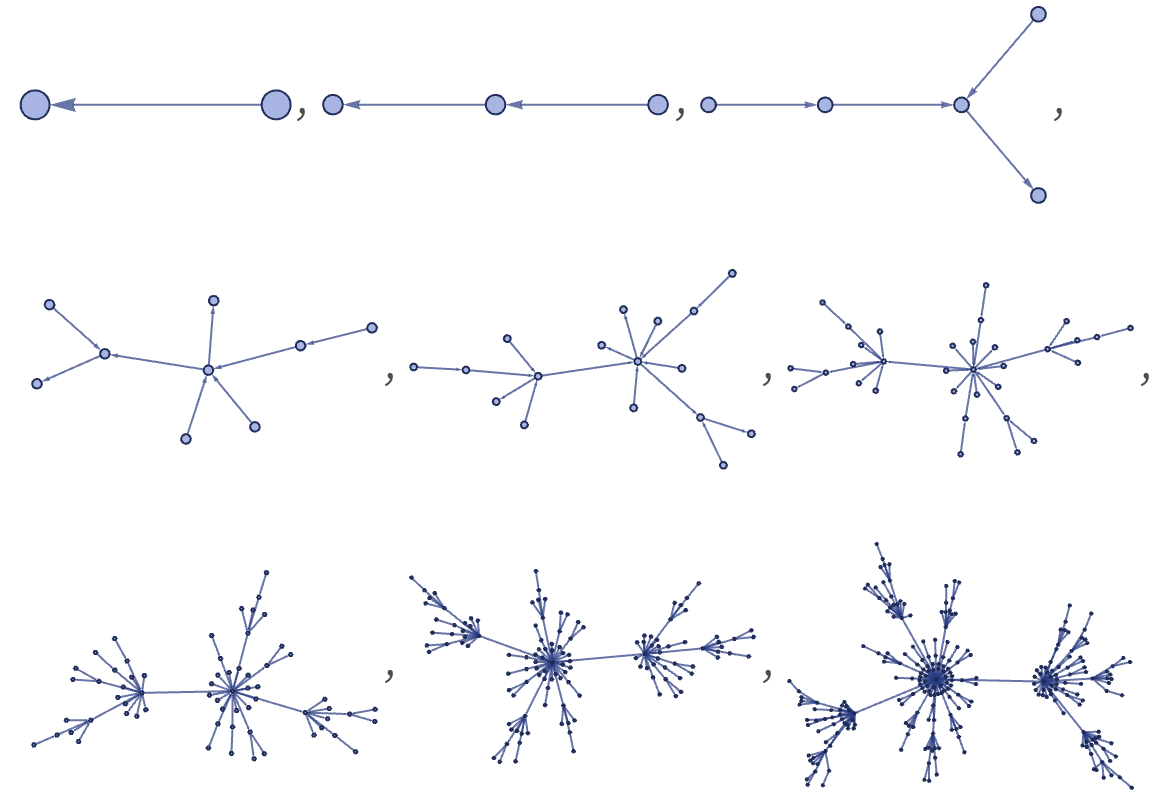

Like the previous rule, running this rule also gives a tree, but now with a somewhat different structure:

ResourceFunction[ "WolframModel"][{{{x, y}} -> {{z, y}, {y, x}}}, {{1, 2}}, 8]["StatesPlotsList", "MaxImageSize" -> 180]

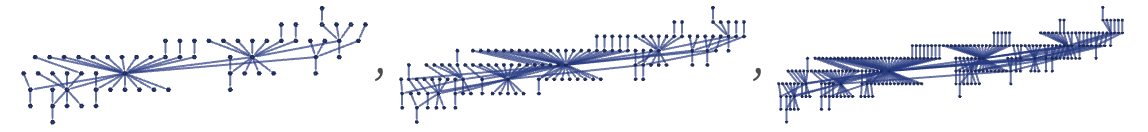

With the other rendering from above, the last 3 steps here are:

Graph[Rule @@@ #, GraphLayout -> "LayeredDigraphEmbedding", VertexStyle -> ResourceFunction["WolframPhysicsProjectStyleData"]["SpatialGraph", "VertexStyle"], EdgeStyle -> ResourceFunction["WolframPhysicsProjectStyleData"]["SpatialGraph", "EdgeLineStyle"], AspectRatio -> 1/3] & /@ Take[ResourceFunction[ "WolframModel"][{{{x, y}} -> {{z, y}, {y, x}}}, {{1, 2}}, 8, "StatesList"], -3]
